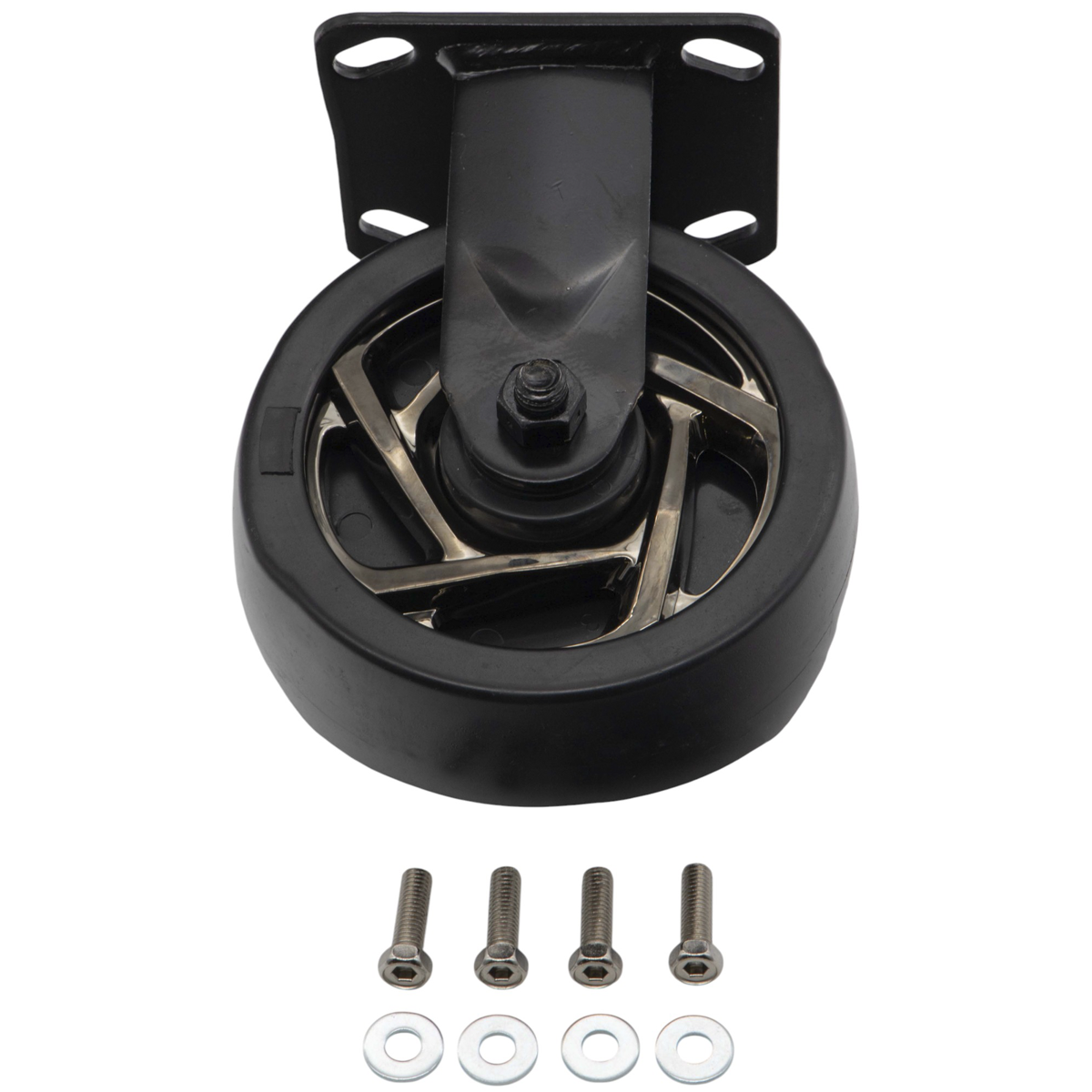

Fixed Castor Kit with Brake 150mm 300kg (AP-CASTOR28)
Technical specifications
| Brand | Sealey |
|---|---|
| Model | AP-CASTOR28 |
| SKU / model code | AP-CASTOR28 |
| Product type | Castor Wheels |
| Capacity | Maximum load capacity: 300kg per castor |
| Dimensions / working range | 150mm wheel diameter; 50mm tread width |
| Shipping weight | 1.79 kg |
Published data is preserved from the product record. Where a specification is missing or the source contains conflicting figures, do not assume a value; contact us before ordering.
Delivery & freight
Heavy workshop equipment may require pallet or freight delivery. Method and cost depend on size, weight and destination.
Returns & warranty
Return eligibility follows our Returns Policy. Warranty coverage is product- and condition-specific; confirm when the exact coverage matters to your purchase.
Description
Fixed Castor Kit with Brake 150mm 300kg (AP-CASTOR28)
A fixed heavy-duty castor on a 150mm wheel, rated to a maximum load capacity of 300kg. Sealey describe it as giving reliable strong support.
It is supplied as a kit with a brake and fixings, and the wheel has a tread width of 50mm.
300kg of load capacity with a fixed mounting, brake and fixings
Rated to a 300kg maximum load capacity
Sealey rate this castor to a maximum load capacity of 300kg, a third more than the 125mm castors in the range. That figure is per castor, so a set carries the total between them.
150mm wheel with a 50mm tread width
The wheel measures 150mm in diameter with a 50mm tread width. The larger wheel is the visible difference from the 125mm AP-CASTOR16.
Fixed mounting for a single line of travel
The wheel is mounted fixed rather than on a swivel. It runs forwards and backwards only, which is what separates it from the swivel kit AP-CASTOR27.
Brake and fixings supplied together
Sealey supply this as a kit, with the brake and the fixings included. Their catalogue text does not itemise the fixings or describe how the brake operates.
Part of a matched Sealey castor range
Sealey list this alongside a 150mm swivel castor kit (AP-CASTOR27) and 125mm 200kg fixed and swivel castors (AP-CASTOR16 and AP-CASTOR17).
What is included
1 x AP-CASTOR28 fixed 150mm castor with brake
Fixings
What is included
1 × AP-CASTOR28 fixed 150mm castor with brake; fixings
Compatibility
Part of the matched Sealey castor range; fixed mounting. Companion swivel kit: AP-CASTOR27.
Use cases
Heavy-duty fixed-direction support for mobile workshop equipment and storage.
